Electric Heat Pump
The MagicPak All-In-One® M-Series MHP electric heat pump unit features proven engineering and unique design features all in a smaller footprint, making it the smart choice for specifying heating and cooling for multifamily developments.
- Fully ducted system
- Cooling capacity of 0.75 - 3.0 tons
- Heat pump heating range of 8,600 - 31,000 BTUH
- Electric heat range of 3 - 10 kW
- Up to 14.0 SEER/13.4 SEER2, 11.0 EER/10.6 EER2 and 8.0 HSPF/6.7 HSPF2
- Individual metering and control for each unit
- Easy plug-and-play-like install and service
- Top supply and return
- Nominal CFM at 0.5” W.C.
- <1.4% cabinet air leak
- Pre-wired and pre-charged
- Factory installed evaporator drain float switch
- Factory installed ventilation air capabilities
- Optional epoxy coated coils
- 5-year limited warranty on all parts
Reference Documents

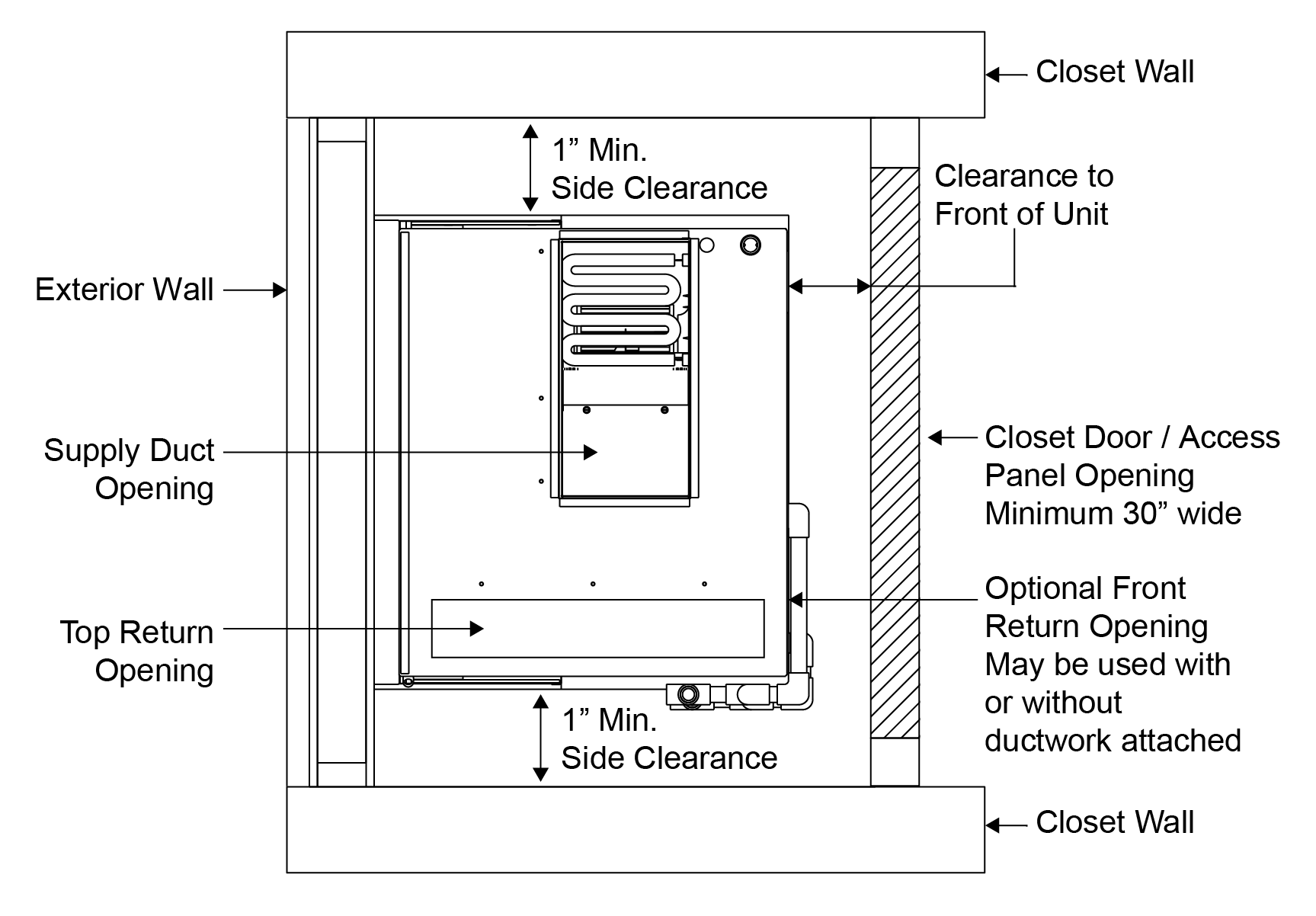

Top View

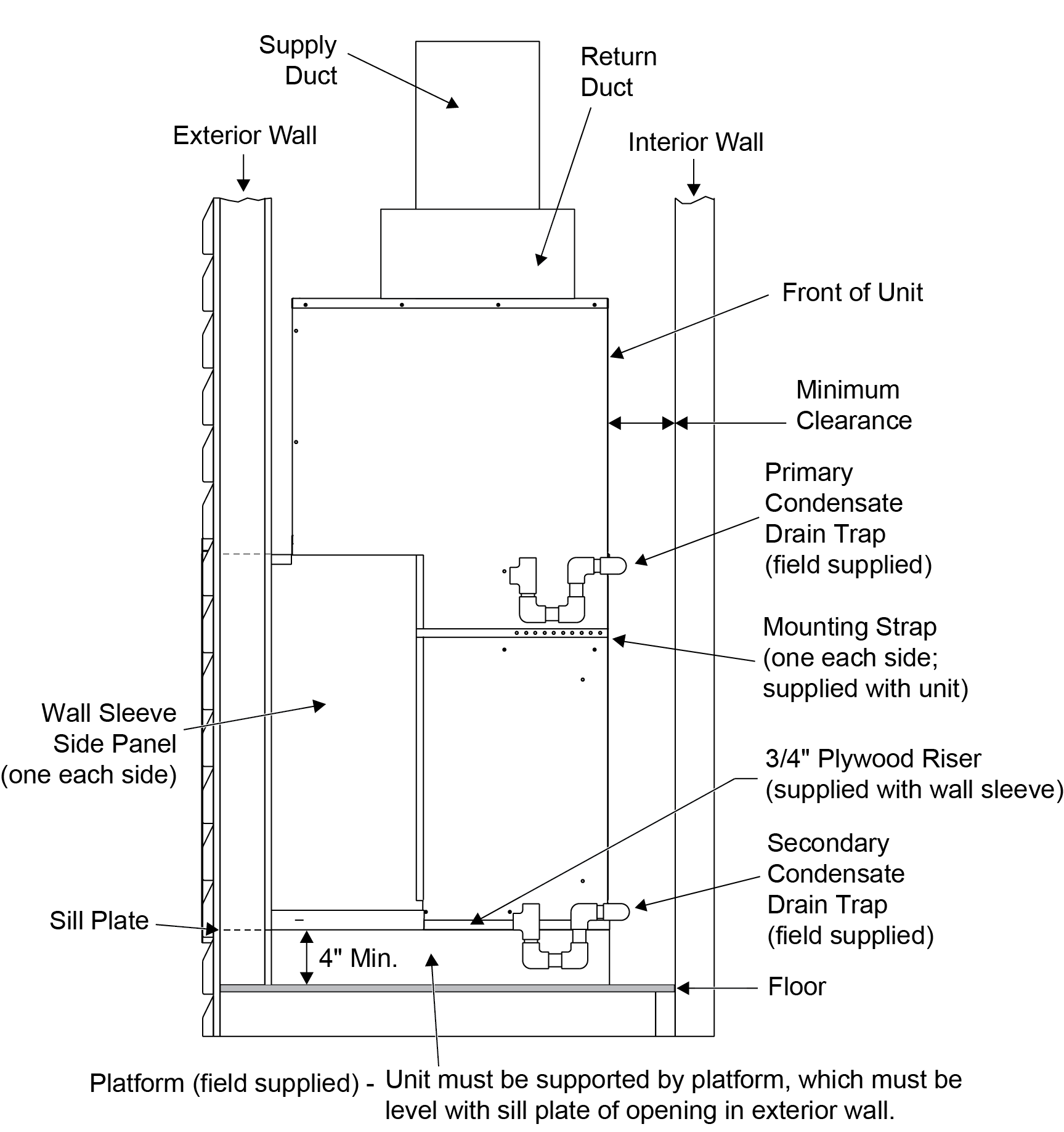

Side View
Find out if MagicPak is the right fit for your project
