Electric Heating/Electric Cooling

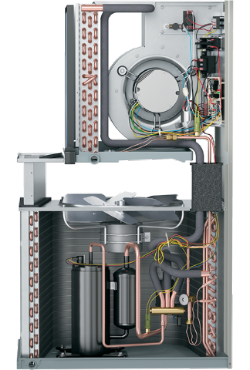

The MagicPak All-In-One® M-Series MCE electric heating/electric cooling unit features proven engineering and unique design features all in a smaller footprint, making it the smart choice for specifying heating and cooling for multifamily developments.
- Fully ducted system
- Cooling capacity of 0.75 - 3.0 tons
- Electric heat range of 0 - 10 kW
- Up to 14.0 SEER/13.4 SEER2 and 11.0 EER/10.6 EER2
- Individual metering and control for each unit
- Easy plug-and-play-like install and service
- Top supply and return
- Nominal CFM at 0.5” W.C.
- <1.4% cabinet air leak
- Pre-wired and pre-charged
- Factory installed evaporator drain float switch
- Factory installed ventilation air capabilities
- Optional epoxy coated coils
- 5-year limited warranty on all parts
Reference Documents
Top View
Side View
Accessories
Customizable louver and wall sleeve options offer design flexibility.
Find out if MagicPak is the right fit for your project
